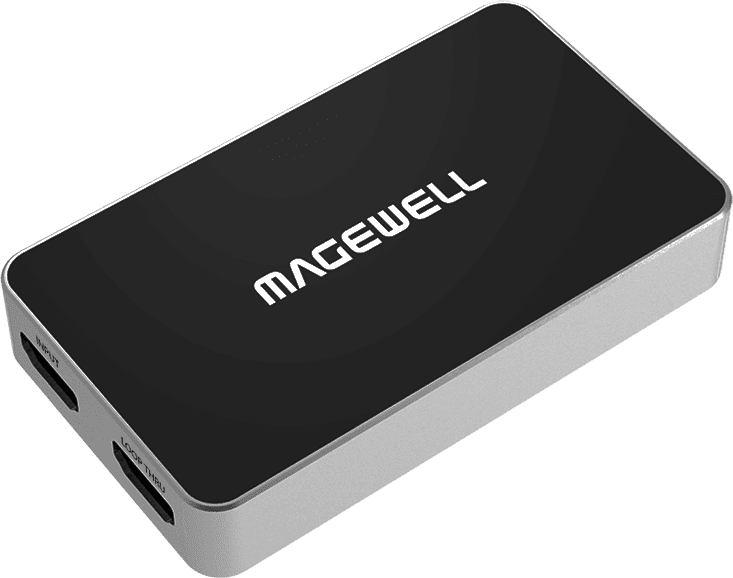

Magewell USB Capture HDMI Plus
$485.00
One-channel 2K capture device
Part number: 32040
- Capture HDMI + embedded audio
- Loop-through HDMI signal

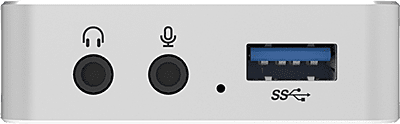

- Audio input via mic
- Extract HDMI embedded audio output via headphones
- Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming
Product Details
USB Capture HDMI Plus Specifications
Input Features
- 297MHz HDMI receiver, max input & loop through video:
- 4096x2160 30fps 4:4:4/4:2:2
- 4096x2160 60fps 4:2:0
- Custom EDID
- Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
- 2-channel IEC60958 audio streams via 3.5mm microphone interface
- HDMI interfaces: HDMI 1.4, DVI-D
Process and Capture Features
- Video processing pipelines with ~160M pixels/s processing bandwidth
- Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 720x576p25
- 720x480p30
- Output YUYV/UYVY/RGB24/RGB32 videos
- Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
- Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
- Up to 2-channel IEC60958 audio streams
Included Software
- USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
- macOS AVCaptureSession/AudioUnit
Output Interface
- USB 3.0
- compatible with USB 2.0
- compatible with USB 3.1 Gen 1
Compatible Software
- Zoom Rooms
- Microsoft Teams
- Skype for Business
- Google Hangouts
- GoToMeeting
- Gstreamer
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS
- Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9/macOS 10.12 and above
- Chrome OS
LED Indicator
- Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor
- 3.86 inch (L) x 2.24 inch (W) x 0.67 inch (H) (98.1mm x 56.8mm x 17mm)
Accessories
- 1 × USB 3.0 cable
Power Consumption
- 5V max current: ~900 mA
- Max power consumption: ~4.5 W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: -20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
