Magewell Ultra Encode AIO
$1,080.00
Ultra Encode AIO
Advanced Streaming and Recording Encoder
- Mixes video from the HDMI and SDI inputs
(picture-in-picture or side-by-side) into a combined output - Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session
- High-efficiency, low-bandwidth NDI®|HX 3 supported
- Supports streaming and recording schedule
- Rack-mountable form factor
Product Details
Ultra Encode AIO Specifications
Input Features
- HDMI supported input & loop-through signals include:
- 4096x2160 30fps 4:4:4/4:2:2
- 4096x2160 60fps 4:2:0
- 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720x576 25p/50i (PAL SD)
- 720x480 29.97p/59.94i (NTSC SD)
- SDI supported input & loop-through signals include:
- 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720x576 25p/50i (PAL SD)
- 720x480 29.97p/59.94i (NTSC SD)
- Custom EDID
- 8/10/12-bit color
- Input & loopthrough 16-Channel SDI embedded audio
- Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
- Input Audio from 3.5 mm LINE IN
- SD/HD/3G BNC input & loopthrough
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
- HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features
- Dual stream encoding: main stream and sub stream
- Max bitrate
- NDI®|HX 3: 62Mbps
- Others: 32Mbps
- SDI&HDMI supported resolutions include:
- 4K: 4096x2160p/3840x2160p 30/29.97/25/24/15/10/5
- HD: 2408x1080p/1920x1200p/1920x1080p/1664x936p/1600x1200p/1600x900p/1440x1080p/1440x900p/1280x1024p/1280x960p/1280x800p/1280x720p/1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
- SD: 960x540p/800x600p/768x576p/720x576p/720x540p/720x480p/640x480p/640x360p/480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
- H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting
- H.264/H.265 (HEVC) supports native CEA–608/608 over 708 captions
- Converting video aspect ratio of dual streams
- Encoding 4 AAC audio streams
- Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
- Output input signal embedded audio and line in through LINE OUT
- Encoding videos after de-interlacing
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
Streaming Features
- Natively support Facebook, Twitch and YouTube
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX 3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®|HX2 sessions (if included)
- Allow simultaneous 1 NDI®|HX3 sessions exclusively
- Specify a video stream and an audio stream for each streaming session
- Provide scheduler for streaming services
Recording Features
- Support for normal recording and loop recording
- Record to external SD card, external USB storage and network attached storage (NFS/CIFS)
- Specify a video stream and an audio stream for each recording task
- Download recorded files via webUI
- Video recordings in MP4, MOV or TS format
- Provide scheduler for recording
Configuration Management
- Real-time LCD monitor for system status, and quick start/stop recording/live functions
- Register with Magewell Cloud
- Remote control via WebUI and Magewell Cloud
- Access WebUI via PC and smartphone
- Provide comprehensive information regarding the system information of device and working status in real-time via WebUI
- Video thumbnail preview via WebUI
- Add up to 8 overlays, including text, picture, and clock
- Check RTSP, SRT Caller, and SRT Listener real-time streaming status
- Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time via WebUI
- Function as a WiFi Access Point and a WiFi station simultaneously
- Update firmware
- Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Network Connections
- Wired Ethernet network: 10/100/1000Mbps
- IEEE 802.3af PoE
- Wi-Fi 802.11 a/b/g/n/ac
- 4G/5G USB mobile broadband Modem (not included)
- USB Net

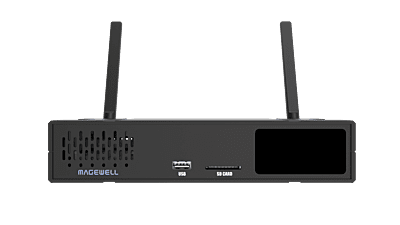

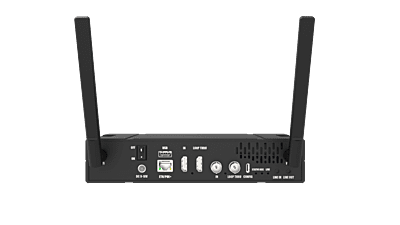

Input/Output Interfaces
- SD/HD/3G BNC input and loop-through interfaces
- HDMI input and loop-through interfaces
- 3.5mm LINE IN
- 3.5mm LINE OUT
- USB Type-C (config)
- SD card slot
- 2 x USB Type-A
LCD Display & LED Indicators
- 1.9 inch LCD display with 320x172 resolution
- Monitor real-time system status in real-time via LCD
- Tap LCD touch screen to start/stop recording/live functions
- LEDs indicators show the status of power, input signal, recording and streaming
Power Supply and Consumption
- DC 9 ~ 18 V, max current: ~ 1.15 A
- Max power consumption: 11.5 W

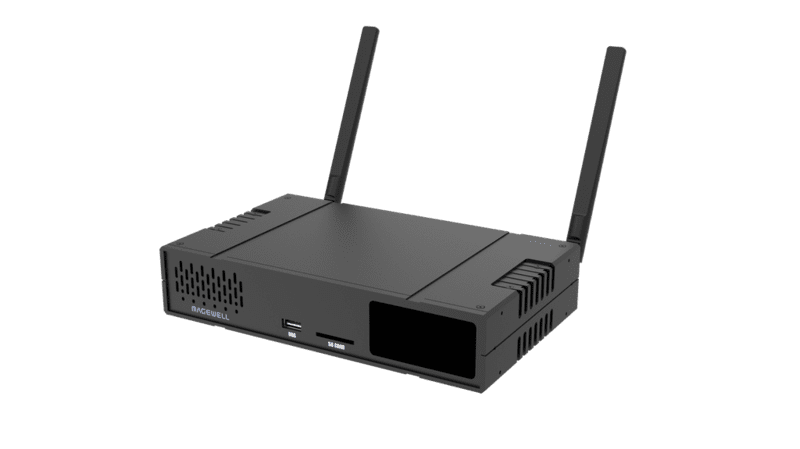

Form Factor
- 214.9mm x 128.2mm x 44.55mm
- Support to mount onto a standard 1U rack with provided rack-mount kit
Accessories
- 1 x Screw locking DC power adapter
- 2 x Wi-Fi antenna
- 1 x HDMI cable
- 7 x M2.5 screws
- 1 x Retainer plate
- 1 x 1U short rack ear
- 2 x 1U long rack ears
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 55 deg C
- Relative humidity: 5% to 90% non-condensing
