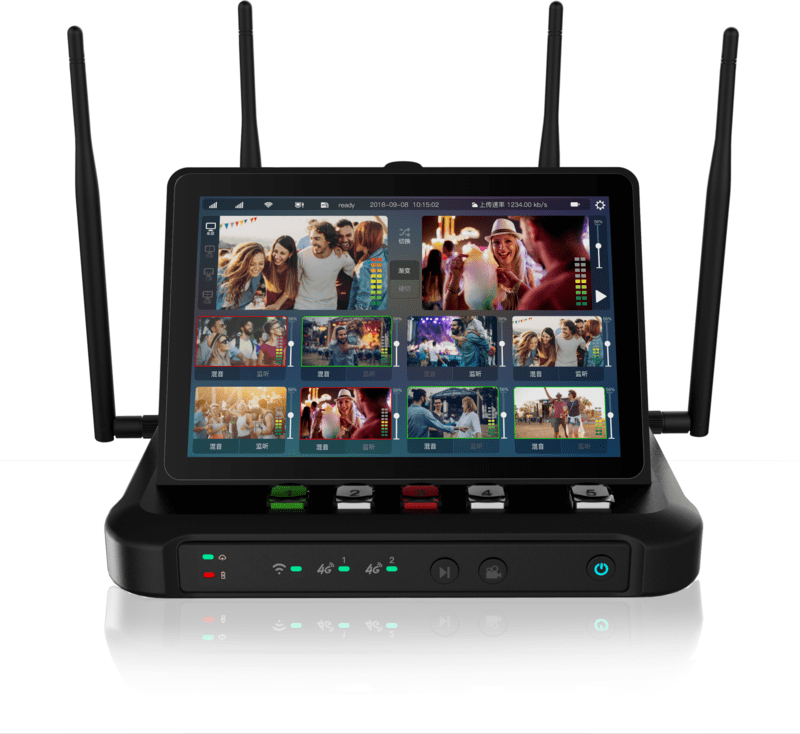

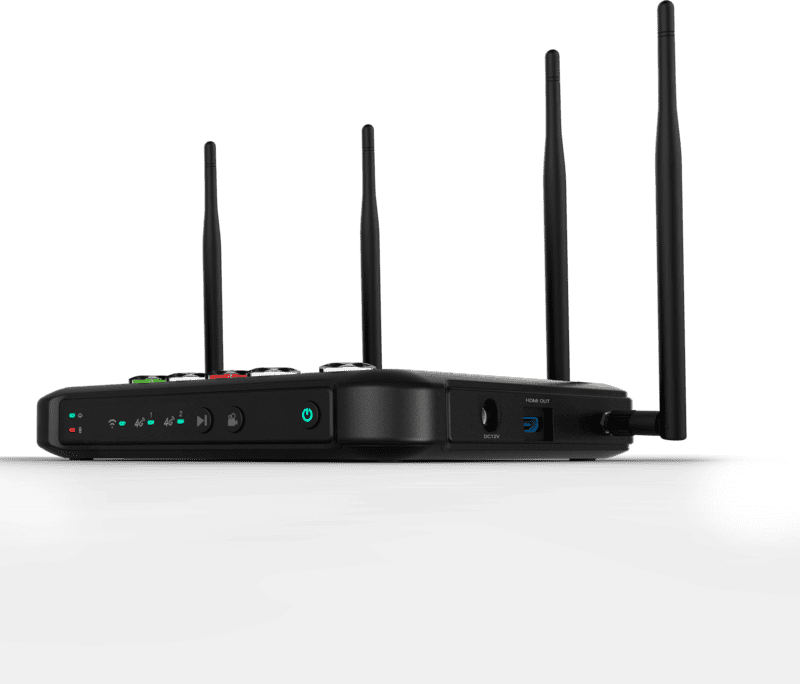

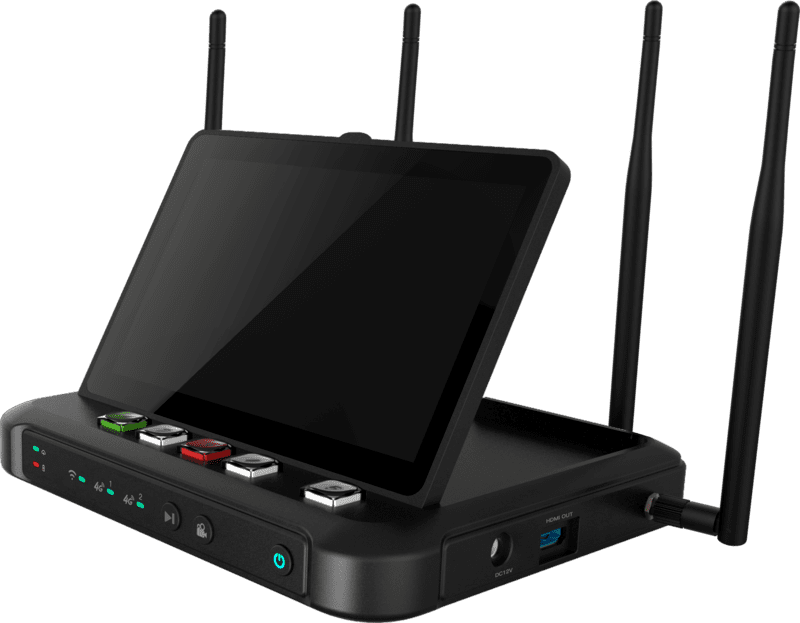

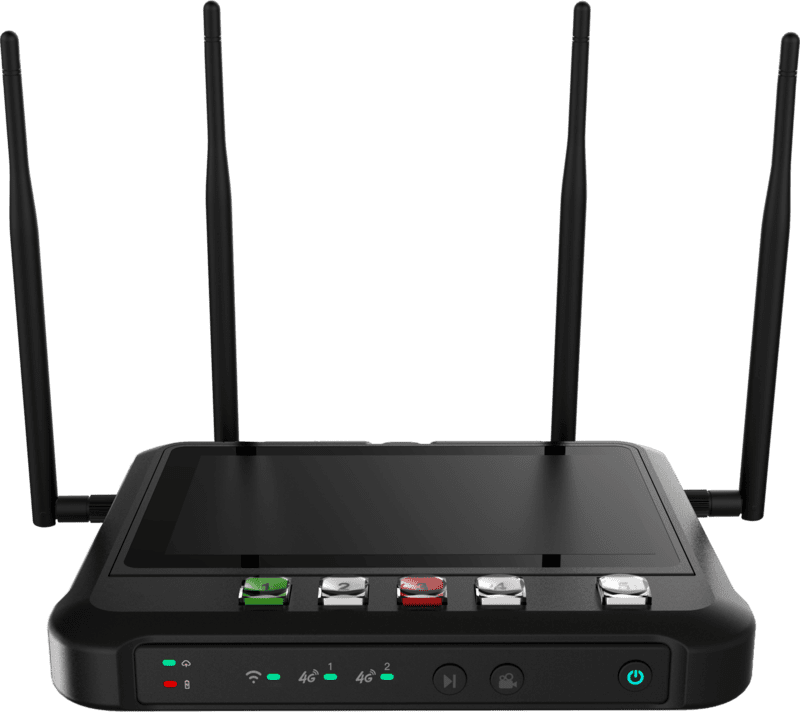

Mine R8 LTE Bonding Portable Switcher

$3,199.00

Mine R8 is an affordable, user-friendly and flexible broadcast bonding video switcher, supports 3G-SDI,HDMI, RTMP etc. All the sources can see simultaneously on one 7 inch touch screen, and makes it easy for your team to run a professional live broadcast event.

Input：2 Compatible HDMI；2SDI； 4RTMP Pull
7 Inch FHD touch screen monitor
1 HDMI out for a large screen monitor
256G TF card for long time recording
4 link bandwidth aggregation at the same time

Add to Cart

Product Details

Product Specification
Model R8 Switcher
Switching Type
Software, Touchscreen
Processing Resolution 1080p at 60
Audio Processing 192 kHz
Video Inputs
2 x HDMI Female
2 x BNC (3G-SDI) Female
Input Video Format
HDMI / SDI
1080p at 25/30/50/60 fps
1080i at 50/60 fps
720p at 25/30/50/60/120 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Audio Inputs
1 x 1/8" / 3.5 mm TRS
Input Audio Format Analog
Embedded Audio Input HDMI
SDI
RJ45
Video Outputs
1 x HDMI Female (Monitor)
Output Video Format
HDMI
1080p up to 60 fps
Audio Outputs
1 x 1/8" / 3.5 mm TRS Analog Female
Output Audio Format Analog
Multiview Output
1-Way Multiview viaHDMI
Other I/O
1 x RJ45 LAN Input/Output (Shared Video Input)
1 x USB-A 3.0 / 3.1/3.2 Gen 1
Display Size 7"
Screen Resolution 1920 x 1080
OS Compatibility
Android 5.0 or Later
iOS 9.0 or Later
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Wi-Fi Yes
Bluetooth None
Built-In Battery 8000 mAh
Power I/O
1 x Barrel (12 VDC at 3 A) Input
Power Consumption 18 W
Operating Temperature
32 to 113°F / 0 to 45°C
Storage Temperature
41 to 104°F / 5 to 40°C
Operating Humidity
15 to 85% (Non-Condensing)
Dimensions
8.5 x 6.9 x 1.2" / 215 x 175 x 30 mm
Weight 5.1 oz / 145 g

Product Specification
Model	R8 Switcher
Switching Type	Software, Touchscreen
Processing Resolution	1080p at 60
Audio Processing	192 kHz
Video Inputs	2 x HDMI Female 2 x BNC (3G-SDI) Female
Input Video Format	HDMI / SDI 1080p at 25/30/50/60 fps 1080i at 50/60 fps 720p at 25/30/50/60/120 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Audio Inputs	1 x 1/8" / 3.5 mm TRS
Input Audio Format	Analog
Embedded Audio Input	HDMI SDI RJ45
Video Outputs	1 x HDMI Female (Monitor)
Output Video Format	HDMI 1080p up to 60 fps
Audio Outputs	1 x 1/8" / 3.5 mm TRS Analog Female
Output Audio Format	Analog
Multiview Output	1-Way Multiview viaHDMI
Other I/O	1 x RJ45 LAN Input/Output (Shared Video Input) 1 x USB-A 3.0 / 3.1/3.2 Gen 1
Display Size	7"
Screen Resolution	1920 x 1080
OS Compatibility	Android 5.0 or Later iOS 9.0 or Later *As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Wi-Fi	Yes
Bluetooth	None
Built-In Battery	8000 mAh
Power I/O	1 x Barrel (12 VDC at 3 A) Input
Power Consumption	18 W
Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	41 to 104°F / 5 to 40°C
Operating Humidity	15 to 85% (Non-Condensing)
Dimensions	8.5 x 6.9 x 1.2" / 215 x 175 x 30 mm
Weight	5.1 oz / 145 g
