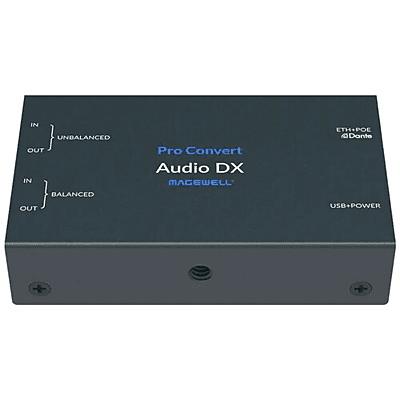

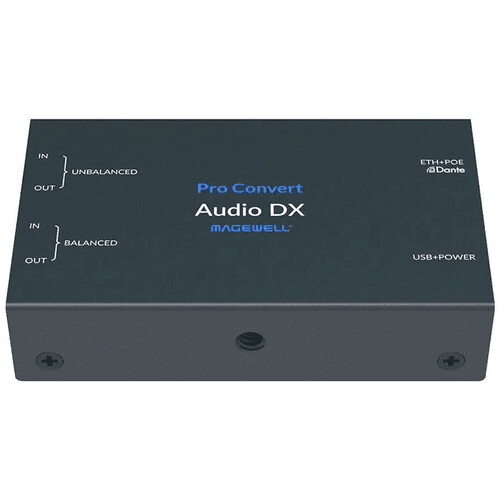

Magewell Pro Convert for Audio DX
$702.00
A multi-format IP audio converter and capture device (Dante® enabled)
Part Number: 64260
- Offers a seamless bridge between analog audio, software and IP standards including Dante®, NDI®, SRT and more
- Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
- Enables mixed-technology local and remote production workflows and ProAV installations
Product Details
Pro Convert Audio DX Specifications
Receiving/Input Features
- Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
- 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
- 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
- 1 x 4-channel 24-bit/48k USB Audio Class in
- Receiving 8-channel 24-bit Dante® flows in unicast or multicast
- Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI® simultaneously
- Support for PTP master/slave
- Total harmonic distortion < 0.01% @ +4dBu
- Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
- Signal to noise ratio > 100dB
- Dynamic range > 100dB
- Max signal level: unbalanced at 12dBu, balanced at 24dBu
Transmitting/Output Features
- Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
- 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
- 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
- 1 x 4-channel 24-bit/48k UAC out
- Encoding 8-channel 24-bit Dante® flows in unicast or multicast
- Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI® protocols simultaneously
- Support for PTP master/slave
- Total harmonic distortion < 0.01% @ +4dBu
- Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
- Dynamic range > 100dB
- Signal to noise ratio > 100dB
- Max signal level: unbalanced at 12dBu, balanced at 18dBu
Configuration Management
- Support for Dante Domain Manager and Dante Controller, providing signal routing and configuration
- Registration with Magewell Cloud
- Remote control via WebUI and Magewell Cloud
- Provision of comprehensive information regarding the device and signals in real-time
- Configuration of how an input is processed and codec, including volume setting, audio matrix, buffer, as well as the network connection
- Support for updating firmware
- Support for USB NET
- Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provision of HTTP APIs

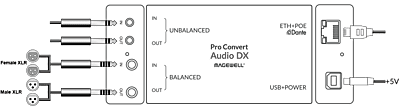

Interfaces
- 10/100/1000Mbps with PoE (IEEE 802.3af)
- USB2.0 Type B
- 5V/2.1A power supply
- USB NET
- 3.5mm TRS unbalanced IN/OUT
- 4.4mm TRRRS balanced IN/OUT
LED Indicators
- Power LED indications:
- on: power on
- off: power off
- PTP LED indications:
- on: synced
- off: not synced
- blinking: syncing
Form Factor
- 100.9mm (L) x 60.2mm (W)x 23.3mm (H)
Accessories
- 4.4mm to Dual XLR Male Cable
- 4.4mm to Dual XLR Female Cable
- USB 2.0 cable (Type A to Type B)
- Universal power adapter
- L bracket
On-board Control Buttons
- 16 Position Rotary DIP Switch: set board-index from 0 to F
Screw Mounting Hole
- ¼–20 threaded hole
Power Consumption
- 5V max current: ~ 1 A
- Max power consumption: ~ 5 W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
