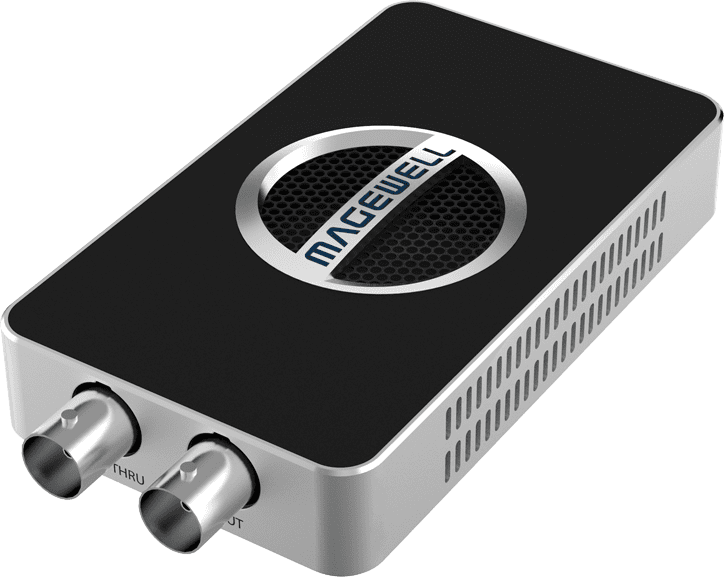

Magewell USB Capture SDI 4K Plus
$647.00
One-channel 4K capture device
Part number: 32100
- Capture SD/HD/3G/2K/6G SDI + embedded audio
- Loop-through SD/HD/3G/2K/6G SDI

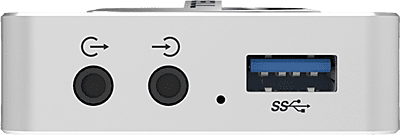

- Audio input via Line in
- Extract SDI embedded audio and output via Line out
Product Details
USB Capture SDI 4K Plus Specifications
Input Features
- Max input & loop through video at 6G 4K (4096×2160 30fps 4:2:2 10-bit)
- Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit
- Up to 8-channel embedded audio
- Input analog audio via 3.5mm line in
- SD/HD/3G/6G-SDI BNC input & loop through
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G 4k(ST 2081) standard
- Input SDI signals transmitted up to 75m for 6G-SDI signal
Process and Capture Features
- Video processing pipelines with ~640Mpixels/s processing bandwidth
- Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30
- 2560x1440p60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90
- 720x576p25
- 720x480p30
- Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
- Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
- Output audio of SDI signal via 3.5 mm line out
- Up to 2 audio channels at 48KHz
Included Software
- USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
- macOS AVCaptureSession/AudioUnit
Output Interface
- USB 3.0
- compatible with USB 2.0
- compatible with USB 3.1 Gen 1
Compatible Software
- Zoom Rooms
- Microsoft Teams
- Skype for Business
- Google Hangouts
- GoToMeeting
- Gstreamer
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS
- Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9/macOS 10.12 and above
- Chrome OS
LED Indicator
- Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor
- 4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm)
Accessories
- 1 × USB 3.0 cable
Power Consumption
- 5V max current: ~0.86 A
- max power consumption: ~ 4.3 W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: -20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
