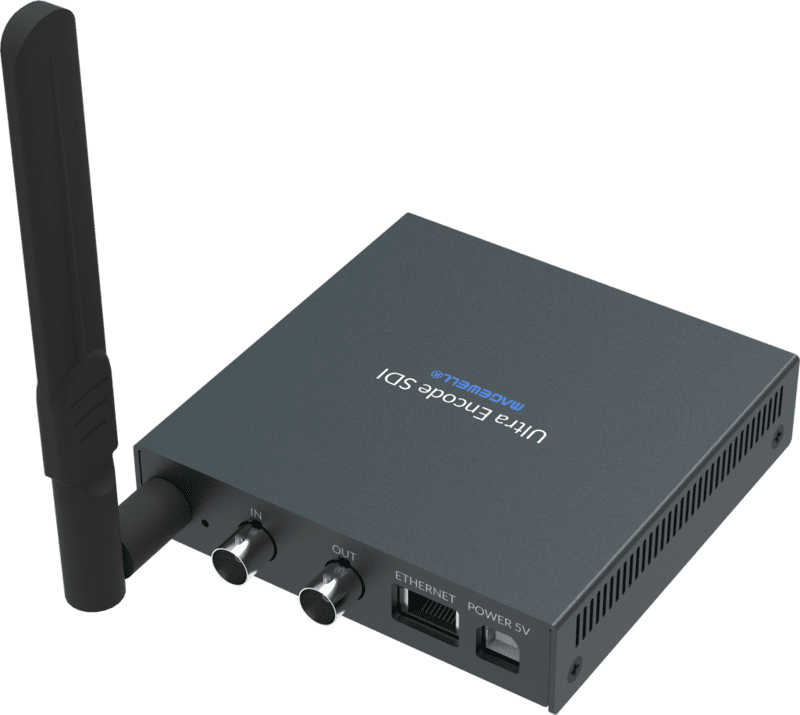

Magewell Ultra Encode SDI
$633.00
A Flexible & Affordable Universal Encoder
- Live H.264/H.265 streaming
- Supports streaming protocols including SRT, NDI®|HX, HLS & more
- Suitable for various network environment
Product Details
Ultra Encode SDI Specifications
Input Features
- Max input & loop-through signal: 2048x1080 60fps
- Supported inputs include:
- 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 1280x720p 25/29.97/30/50/59.94/60
- 720x576 25p/50i (PAL SD)
- 720x480 29.97p/59.94i (NTSC SD)
- 8/10/12-bit color
- Input & loopthrough 16-Channel SDI embedded audio
- Input Audio from 3.5 mm LINE IN
- SD/HD/3G BNC input & loopthrough
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
Encoding Features
- Dual stream encoding: main stream and sub stream
- Max bitrates: 16Mbps
- Supported resolutions:
- HD: 2408x1080p/1920x1200p/1920x1080p/1920x720p/1664x936p/1600x1200p/1600x900p/1440x1080p/1440x900p/1280x1024p/1280x960p/1280x800p/1280x720p/1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
- SD: 960x540p/800x600p/768x576p/720x576p/720x540p/720x480p/640x480p/640x360p/480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
- H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting
- H.264/H.265 (HEVC) supports native CEA–608/608 over 708 captions
- Converting video aspect ratio of dual streams
- Encoding 2-channel AAC audio
- Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
- Extracting audio from SDI signal, LINE IN and output through LINE OUT
- Encoding videos after de-interlacing
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
Streaming Features
- Natively support Facebook, Twitch and YouTube
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
- Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
- Up to 6 sessions of TS over RTP and TS over UDP simultaneously
- Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
- Up to 6 sessions of RTMP and RTMPS simultaneously
- Stream only 1 session of HLS, RTSP, or NDI|HX2
- Specify streaming main stream or sub stream for each session
Configuration Management
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Provide comprehensive information regarding the system information of device and working status in real-time
- Low-resolution thumbnail preview
- Adding up to 8 overlays, including text, picture, and clock
- Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
- Update firmware
- Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Network Connections
- Wired Ethernet network: 10/100/1000Mbps
- Wi-Fi 802.11 a/b/g/n/ac
- 4G/5G USB mobile broadband Modem (not included)
- USB Net

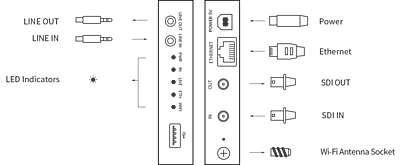

Input/Output Interfaces
- SD/HD/3G BNC input and loop-through interfaces
- 3.5mm LINE IN
- 3.5mm LINE OUT
LED Indicators
- LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption
- DC 5V/3A
- Max power consumption: ~7.16W
Form Factor
- 106.6mm x 106.2mm x 25mm
Accessories
- 1 x 5V Power Adapter
- 1 x USB Type A to Type B cable
- 1 x Wi-Fi Antenna
- 1 x T-bracke
Screw Mounting Hole
- 2 x M3 threaded hole
- A standard 1/4"-20 socket provided by T-bracket
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 60 deg C
- Relative humidity: 5% to 90% non-condensing
