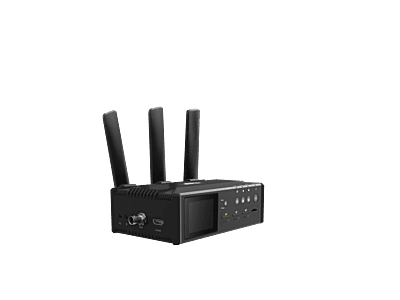

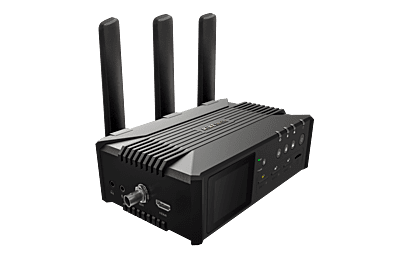

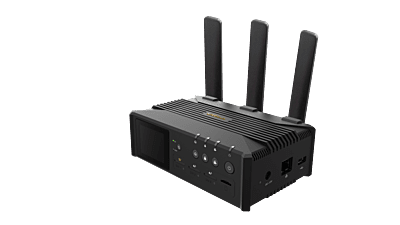

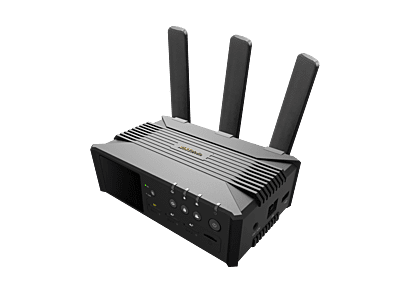

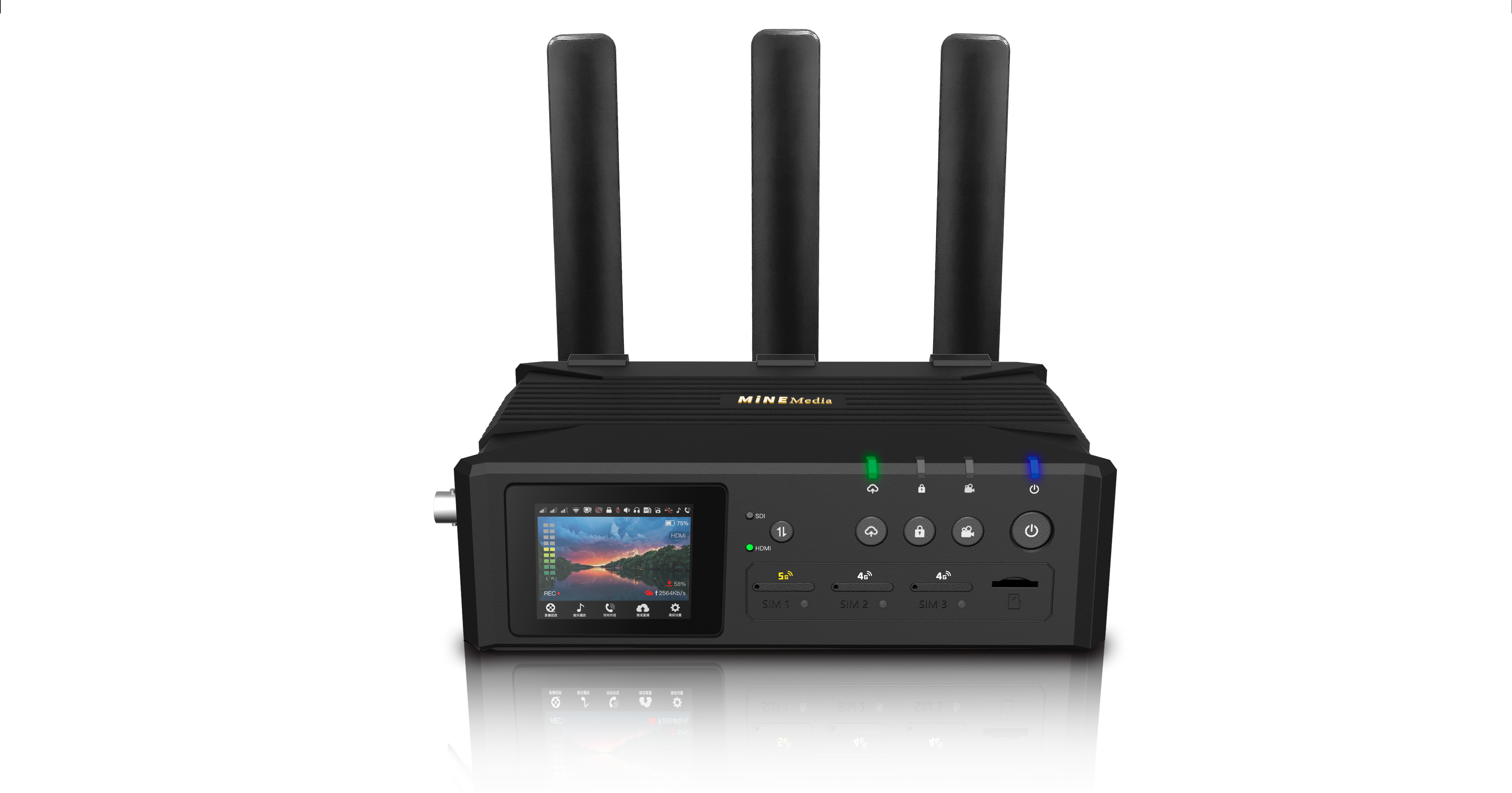

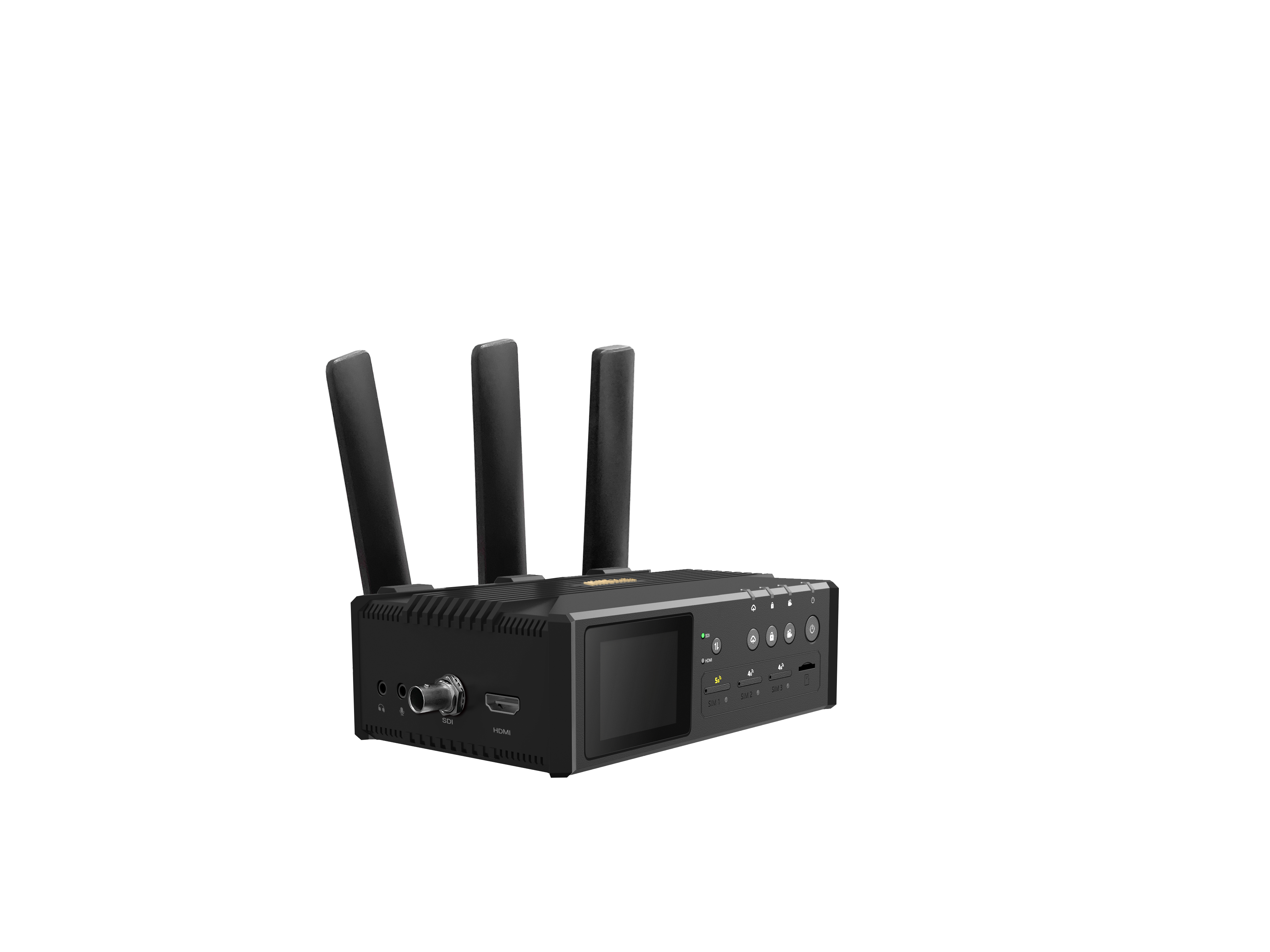

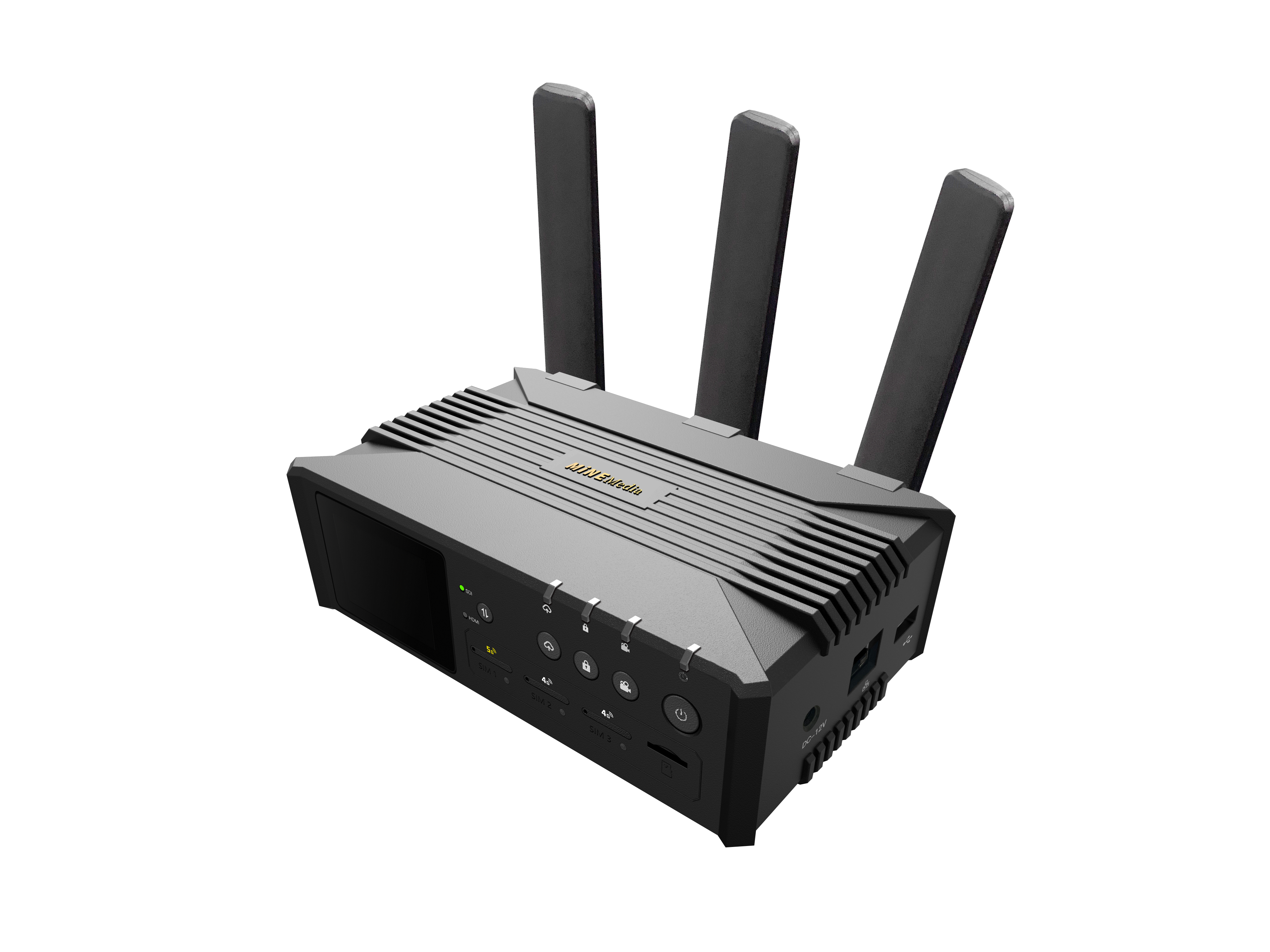

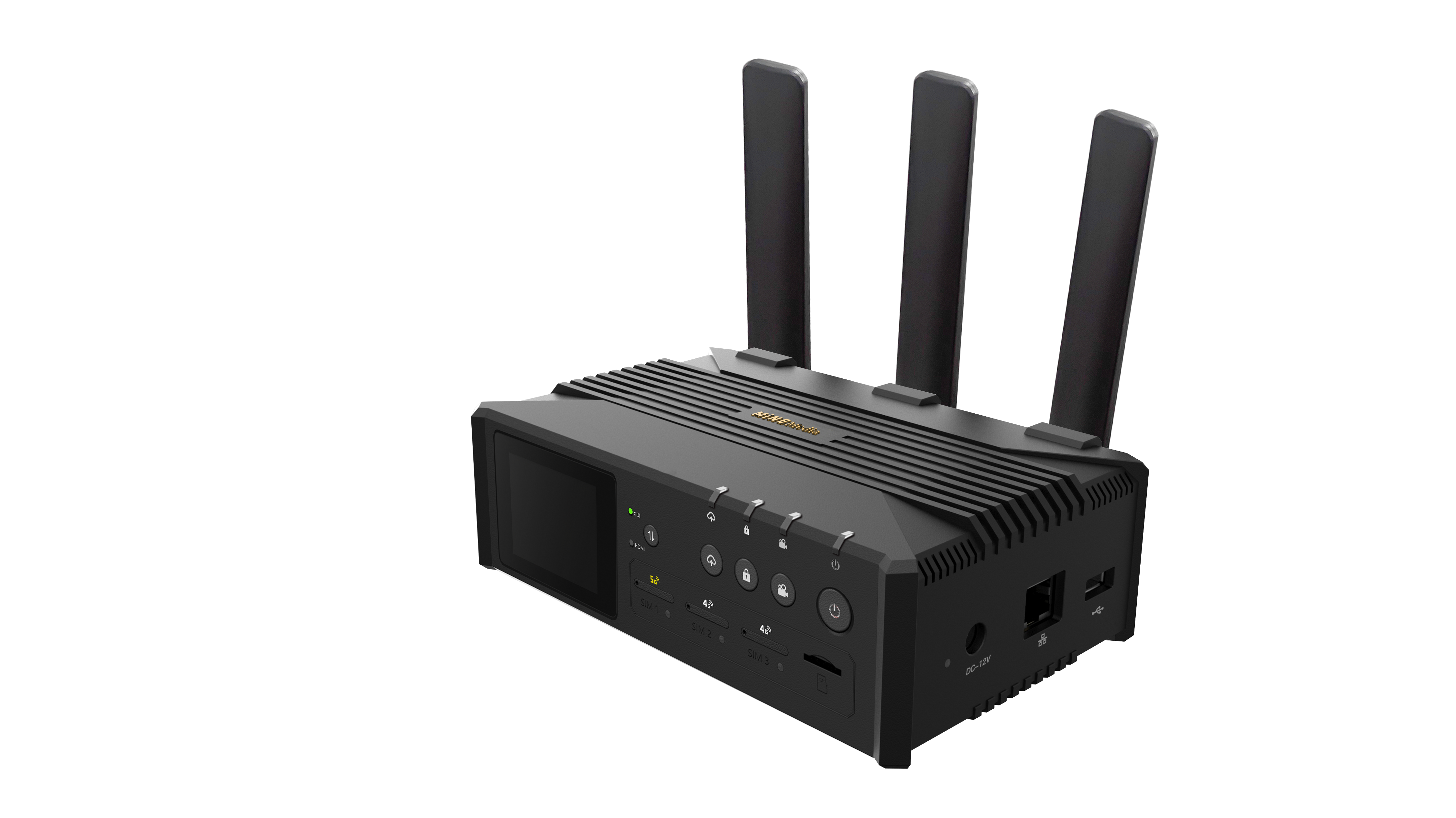

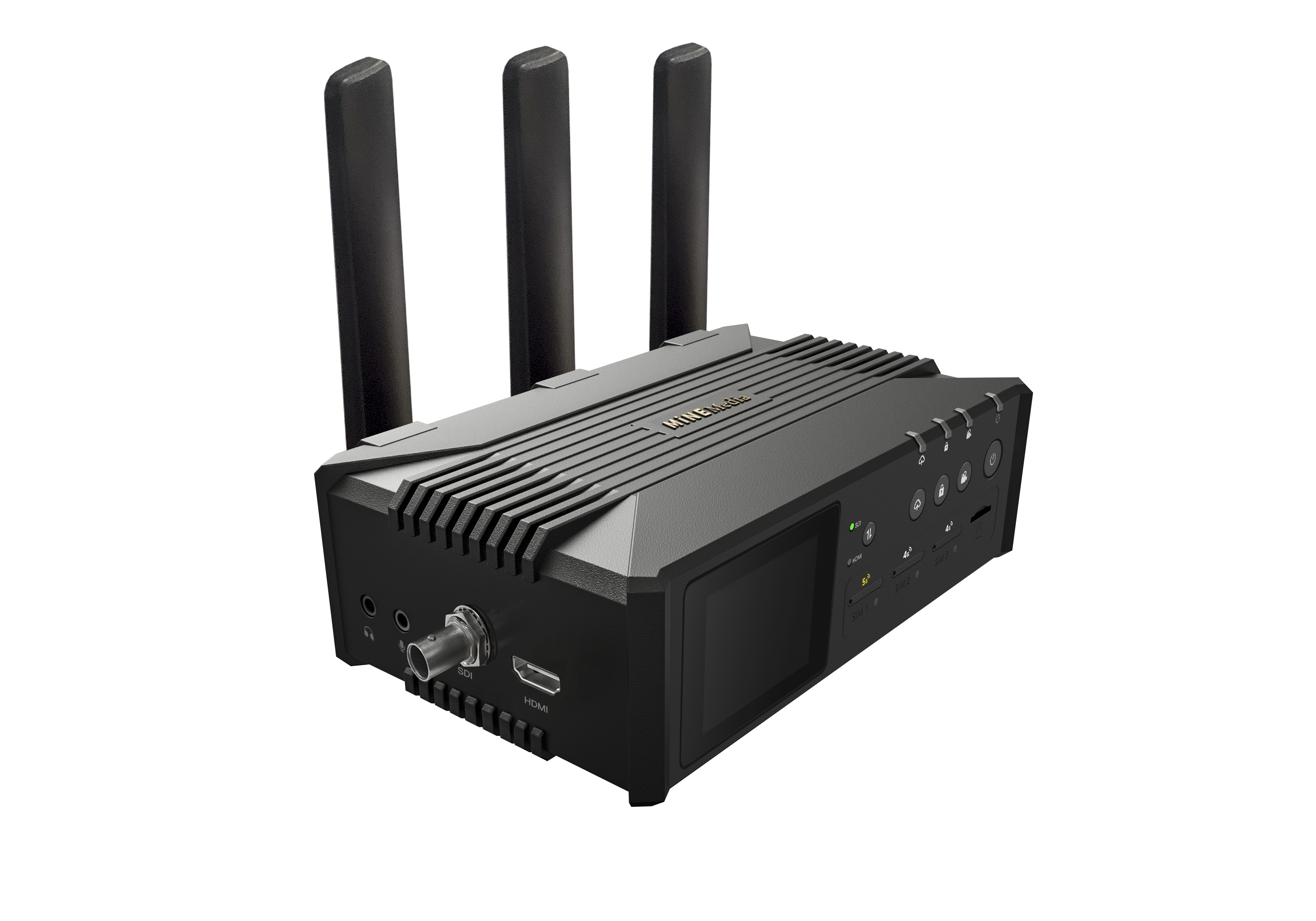

Mine Media Q8 5G LTE Encoder

$2,495.00

Mine Q8 HDMI/SDI 5G Video Encoder with Cellular Bonding for Live Streaming

Equipped with a Gigabit Ethernet port, Industrial level Wi-Fi and 3 SIM Card Triple technology to protect against the worst network scenarios.
HDMI/SDI dual ports switch fulfils the needs of different scenarios.
Bonds up to 3 SIM, RJ45 and Wi-Fi, USB dongle(optional)
Low Latency
Mobile App Control Management
Multiple Platform Stream Support
Touch Screen to Monitor and Control
5-6 Hours (7500 MAh) Rechargeable built in Battery

Add to Cart

Product Details

Specifications

Model:
Mine-Q8
Video input interface:
HDMI+SDI
Video Format:
MP4
Audio compression standard:
AAC(48K)
Audio input sampling rate:
8kHz-192kHz
Video input system:
PAL NTSC 720p: 25/30/50/60/120fps 1080i: 50/60fps 1080p: 25/30/50/60fps
Live Resolution:
480*270 | 640*360 848*480 |960*540 1280*720 | 1920*1080
Video Resolution:
Max support 1080p60
Video storage:
TF Card max support 2TB
Wifi:
2.4G/5G
4G Network:
3 SIM TD/FDD-LTE
Sim card type:
Nano
Network port:
Gigabit network port
Interface:
1x USB 2.0, RJ45, 2x3.5mm Slot, 1x USB Dongle(optional)
Preview Screen:
Yes
Protocol:
RTMP/RTMPS/RTSP/SRT
Management:
Mobile app (Android 5+ & IOS 9 or above)
Display:
2 inch LCD
Battery Capacity:
7200mAh (built-in)
Working Duration:
4 hours
Power Consumption:
12V, 3A
Storage Temperature:
(-40°C~90°C)
Working Temperature:
(-20°C~80°C)
Relative Humidity:
5%-90% no condensation
Size:
162*102*53.4mm
Net Weight:
735g
Package Gross Weight:
2.0Kg
