Mine Media Q8 LTE Encoder
$1,950.00

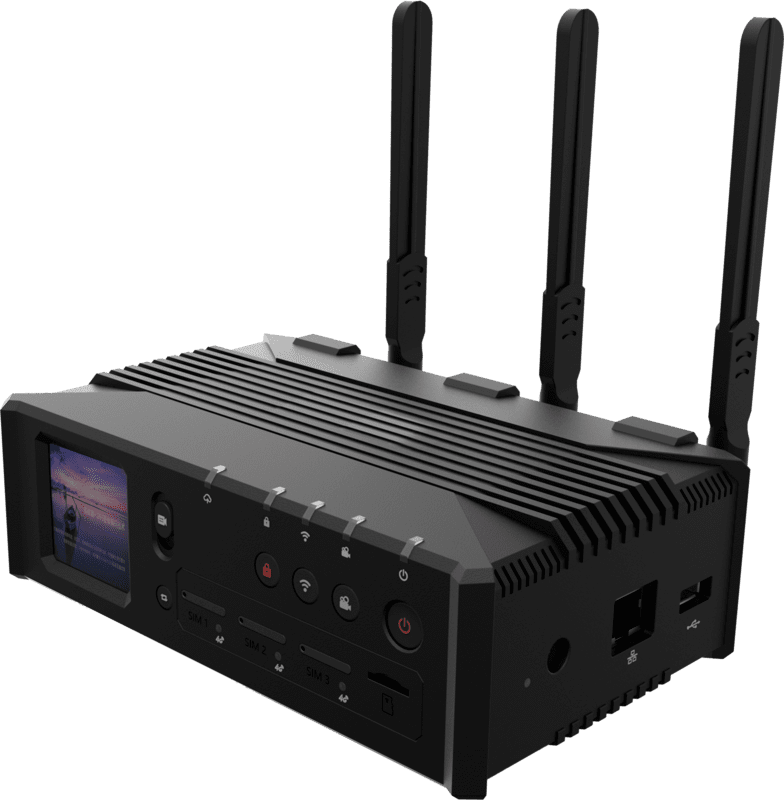

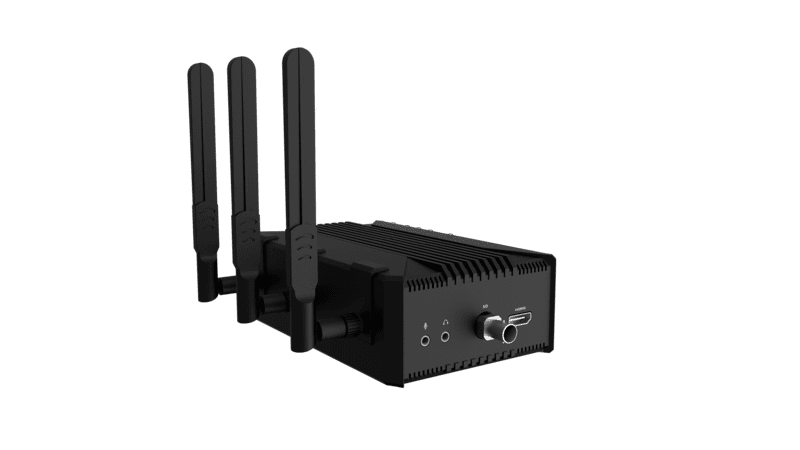

Mine Q8 HDMI/SDI 4G Video Encoder with Cellular Bonding for Live Streaming
- Equipped with Gigabit Ethernet port, Industrial level Wi-Fi and 3 SIM Card Triple technology to against the server network scenarios.
- HDMI/SDI dual ports switch fulfil needs for different scenarios.
- Bonds up to 3 SIM, RJ45 and Wi-Fi, USB dongle(optional)
- Low Latency

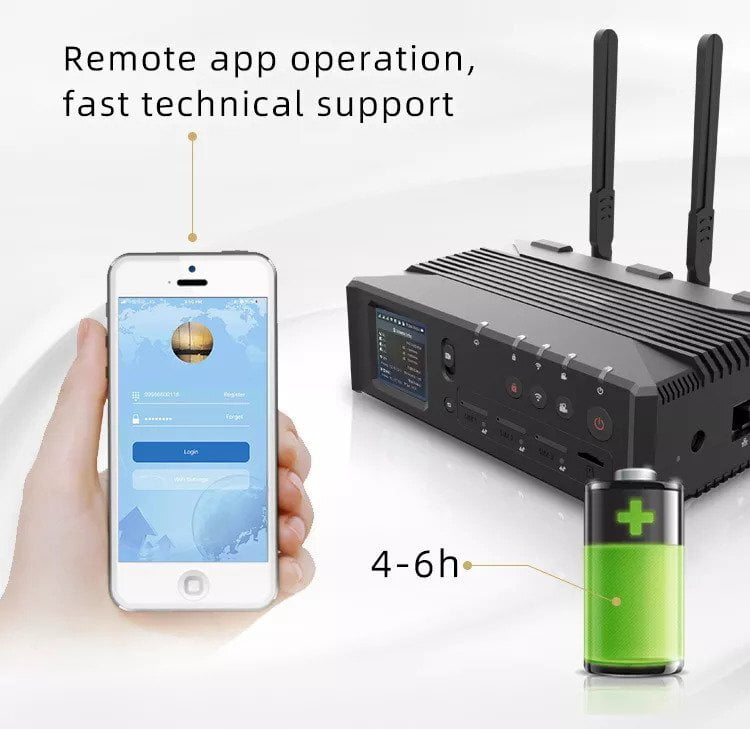

- Mobile App Control Management
Product Details
Specifications
Q8 Product Specifications
- Model:Mine-Q8
- Video input interface:HDMI+SDI
- Video Format:MP4
- Audio compression standard:AAC(48K)
- Audio input sampling rate:8kHz-192kHz
- Video input system:PAL NTSC 720p: 25/30/50/60/120fps 1080i: 50/60fps 1080p: 25/30/50/60fps
- Live Resolution:480*270 | 640*360 848*480 |960*540 1280*720 | 1920*1080
- Video Resolution:Max support 1080p60
- Video storage:TF Card max support 2TB
- Wifi:2.4G/5G
- 4G Network:3 SIM TD/FDD-LTE
- Sim card type:Nano
- Network port:Gigabit network port

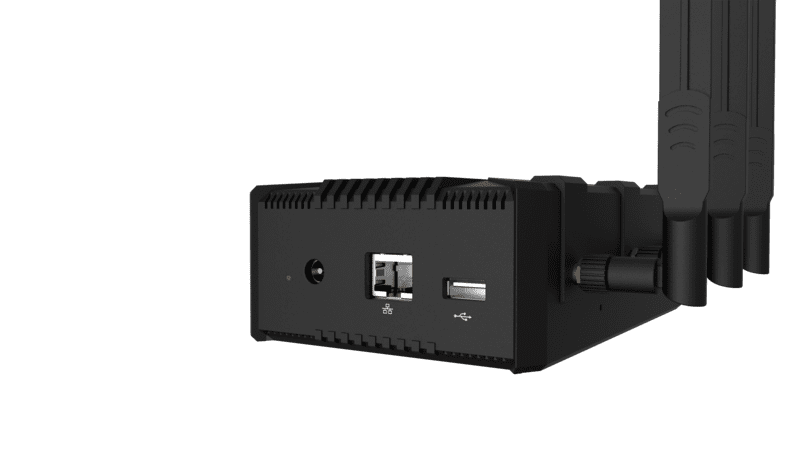

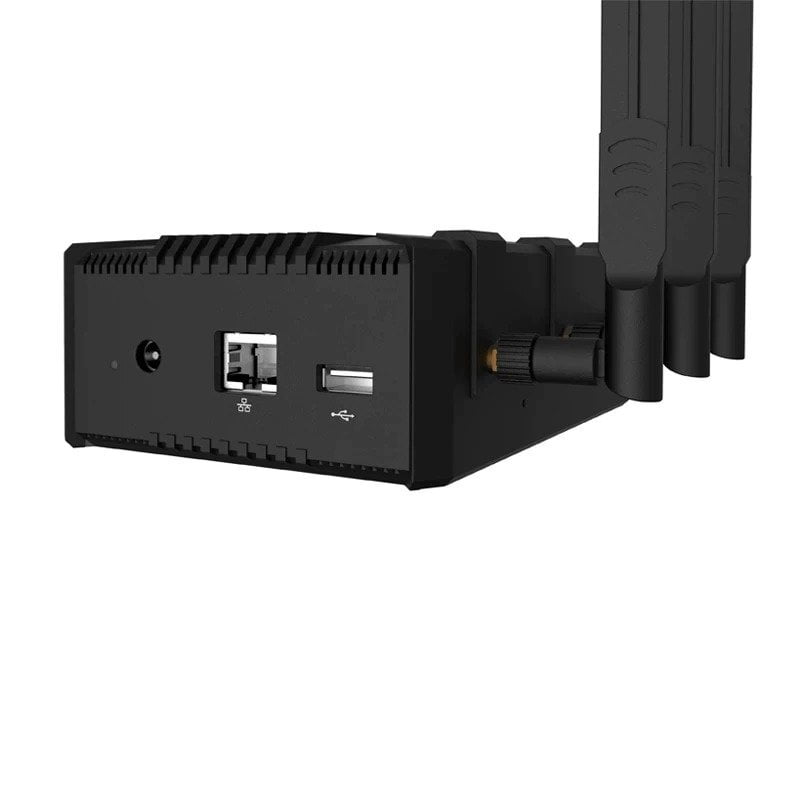

- Interface:1x USB 2.0, RJ45, 2x3.5mm Slot, 1x USB Dongle(optional)
- Preview Screen:Yes
- Protocol:RTMP/RTMPS/RTSP/SRT
- Management:Mobile app (Android 5+ & IOS 9 or above)

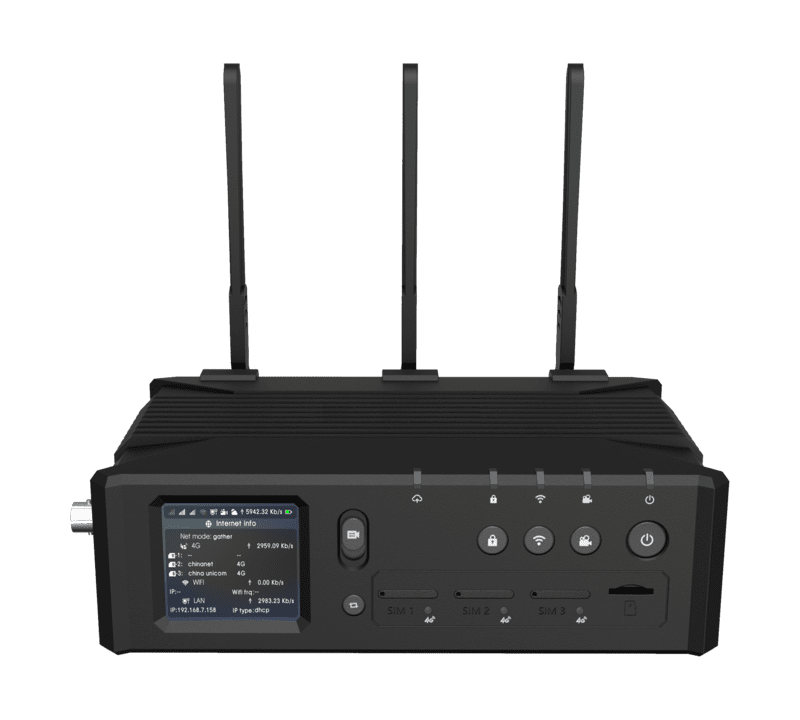

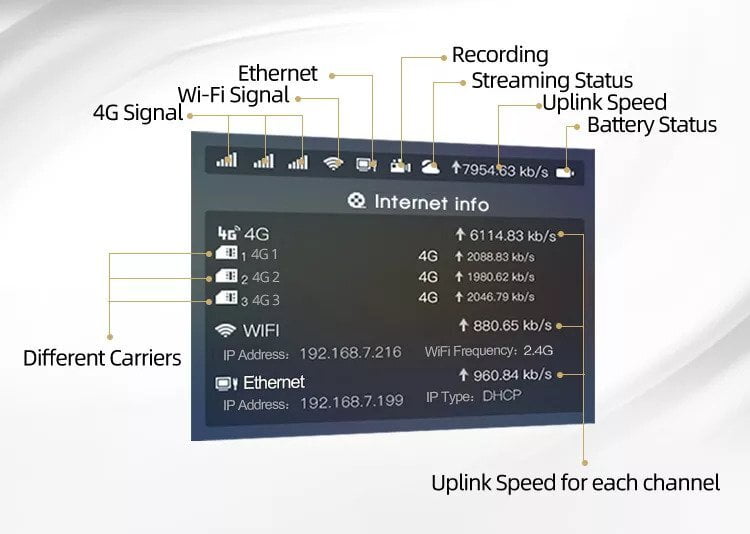

- Display:2 inch LCD
- Battery Capacity:7200mAh (built-in)
- Working Duration:4 hours
- Power Consumption:12V, 3A
- Storage Temperature:(-40°C~90°C)
- Working Temperature:(-20°C~80°C)
- Relative Humidity:5%-90% no condensation
- Size:162*102*53.4mm
- Net Weight:735g
- Package Gross Weight:2.0Kg
