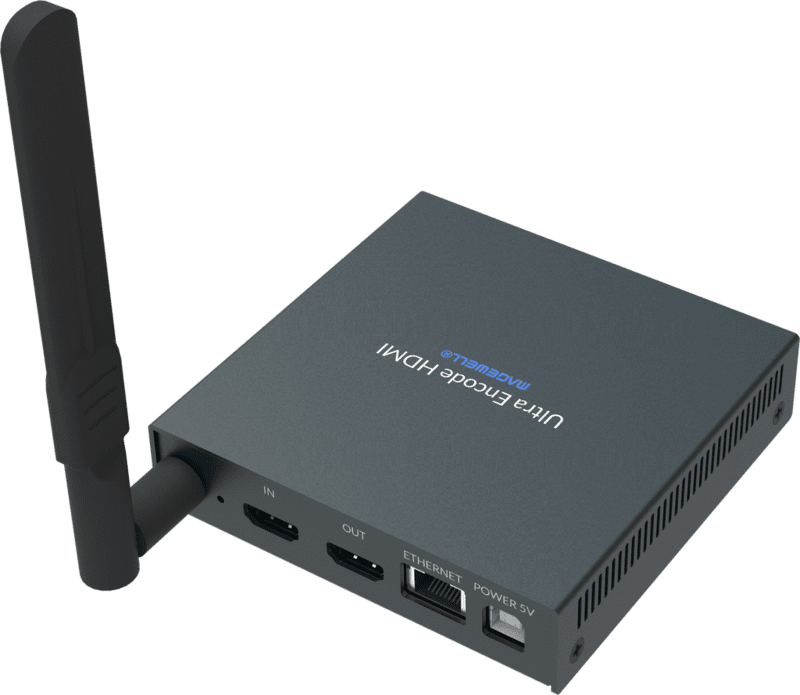

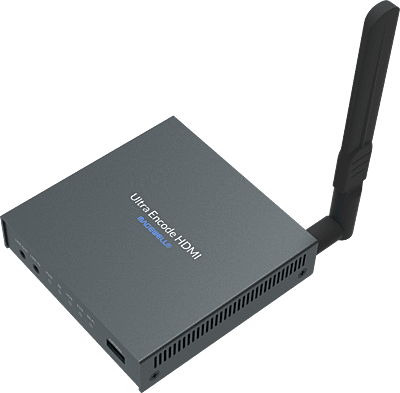

Magewell Ultra Encode HDMI
$633.00
A Flexible & Affordable Universal Encoder
- Live H.264/H.265 streaming
- Supports streaming protocols including SRT, NDI®|HX, HLS & more
- Suitable for various network environment
Product Details
Ultra Encode HDMI Specifications
Input Features
- Max HDMI input & loop-through signals:
- 4096x2160 60fps 4:2:0
- 4096x2160 30fps 4:4:4/4:2:2
- Custom EDID
- Supported inputs include:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
- 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 25/29.97/30/50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
- 720x576p 50/100/144
- 720x576i 25/50
- 720x480p 59.94/60/144
- 720x480i 29.97/30
- 8/10/12-bit color
- Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
- Input audio from 3.5 mm LINE IN
- HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features
- Dual stream encoding : main stream and sub stream
- Max bitrate: 16Mbps
- Support resolutions:
- HD: 2408x1080p/1920x1200p/1920x1080p/1920x720p/1664x936p/1600x1200p/1600x900p/1440x1080p/1440x900p/1280x1024p/1280x960p/1280x800p/1280x720p/1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
- SD: 960x540p/800x600p/768x576p/720x576p/720x540p/720x480p/640x480p/640x360p/480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
- H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting
- Converting video aspect ratio of dual streams
- Encoding 2-channel AAC
- Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
- Extracting audio from HDMI signal, LINE IN and output through LINE OUT
- Encoding videos after de-interlacing
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
Streaming Features
- Natively support Facebook, Twitch and YouTube
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
- Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
- Up to 6 sessions of TS over RTP and TS over UDP simultaneously
- Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
- Up to 6 sessions of RTMP and RTMPS simultaneously
- Stream only 1 session of HLS, RTSP, or NDI|HX2
- Specify streaming main stream or sub stream for each session
Configuration Management
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Provide comprehensive information regarding the system information of device and working status in real-time
- Low-resolution thumbnail preview
- Adding up to 8 overlays, including text, picture, and clock
- Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
- Update firmware
- Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Network Connections
- Wired Ethernet network: 10/100/1000Mbps
- Wi-Fi 802.11 a/b/g/n/ac
- 4G/5G USB mobile broadband Modem (not included)
- USB Net

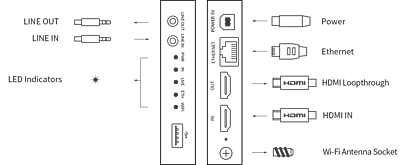

Input/Output Interfaces
- HDMI input and loop-through interfaces
- 3.5mm LINE IN
- 3.5mm LINE OUT
LED Indicators
- LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption
- DC 5V/3A
- Max power consumption: ~8.62W
Form Factor
- 106.6mm x 106.2mm x 25mm
Accessories
- 1 x 5V Power Adapter
- 1 x HDMI Cable
- 1 x USB Type A to Type B cable
- 1 x Wi-Fi Antenna
- 1 x T-bracke
Screw Mounting Hole
- 2 x M3 threaded hole
- A standard 1/4"-20 socket provided by T-bracket
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 60 deg C
- Relative humidity: 5% to 90% non-condensing
